2× QDS Mine Dewatering Pods — 3,000L Hopper Tank, Mono Helical Rotor Pumps, 22kW 1000V (Sold as Pair)

Overview

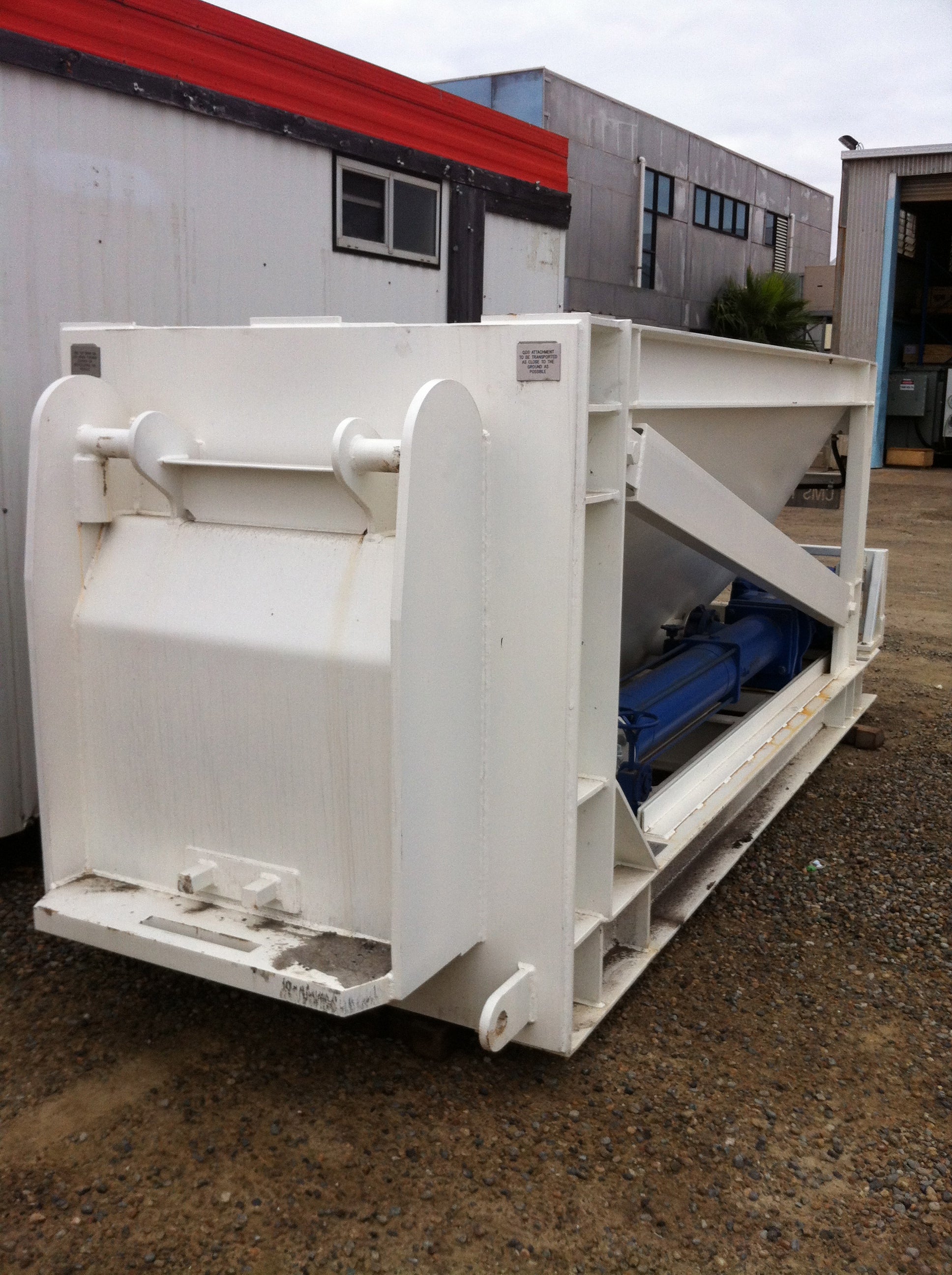

Pair of QDS-attachment relocatable underground mine dewatering pods, each with a 3,000-litre hopper-style tank in 3CR12 chrome steel and a Mono helical rotor pump driven by a 22 kW 1000V TEFC electric motor. Engineered for underground coal and tunnelling dewatering, with an Eimco-compatible QDS frame that allows relocation with the tank full of water over short distances (<20 m) in an emergency. Sold as a pair.

Specifications

• Quantity: 2 pods (sold as a pair)
• Tank capacity: 3,000 L per pod (hopper style)
• Tank material: 3CR12 chrome steel (corrosion / wear resistant)
• Pump: Mono C1ABC81RMA/G134 helical rotor
• Motor: 22 kW, 4-pole, TEFC, 1000V
• Duty: 13.3 L/s @ 122 m head (12 bar) per pod
• Control: Float switch (auto stop/start) with manual override

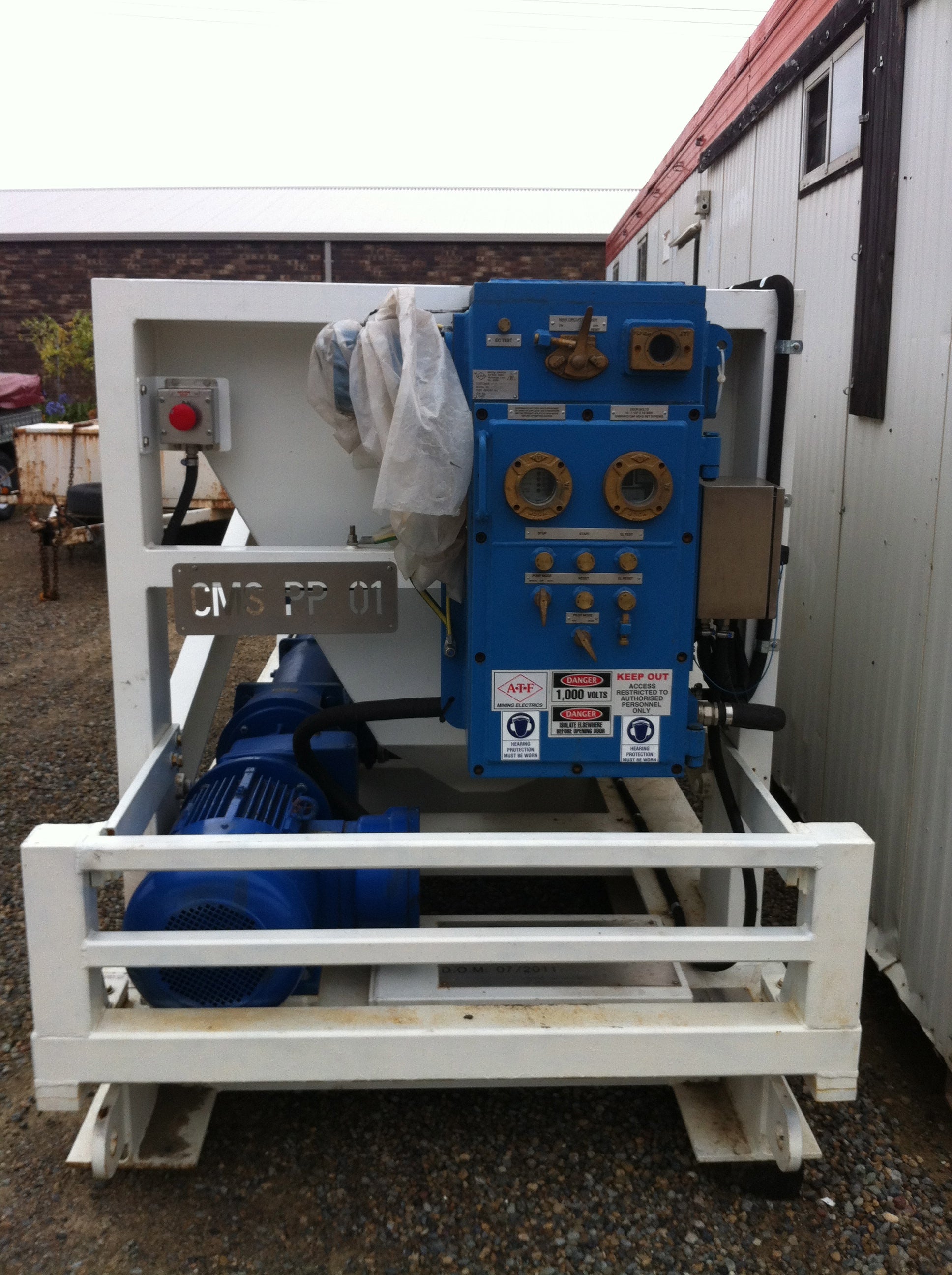

• Control panel: 1000V, supplied with each pod
• Isolation: 150NB hand-wheeled valves on suction and discharge
• Drain: 150NB drain valve on tank
• Pump change-out: Victaulic fitting + skid design — 8 bolts on suction flange + 1 on clamp
• Transport: Eimco-compatible QDS frame, end-elevation
• Jacking feet: M30 Grade 8 stainless, 4,000 kg rated per foot
• Frame finish: Steel, white enamel paint system, sled base
• Approx. dimensions per pod: 4,600 mm L × 1,500 mm W × 1,700 mm H
• Approx. mass per pod: 2,178 kg

Key Features

• 1000V electric drive — suited to underground coal and gassy environments (no diesel emissions) AS3800 overhaul required.
• Relocatable with tank full of water — engineered for emergency repositioning underground
• Mono helical rotor pump — proven progressive-cavity design, ideal for solids-laden mine water
• 3CR12 chrome steel tank for extended corrosion and wear life
• Quick pump change-out via Victaulic clamp and skid — minimises downtime
• Sled base with QDS end-attachment for machine-assisted relocation
• Threaded jacking feet for longitudinal levelling underground
• Complete package: tank, pump, motor, 1000V control panel, valves and decal plates included with each pod

Condition

Used. Workshop maintained and presentable. Full condition report, motor test certificates and service history available to qualified buyers on enquiry. Inspection by appointment, arranged through CMS Corequip.

Location & Delivery

Located in Australia. Delivery / transport can be arranged and quoted separately to buyer's site. Sold as-is, where-is. Freight and rigging at buyer's cost.

How to Enquire

Use the Enquire Now button above to register your interest. Include your company, ABN, intended application, timing, and budget. We'll respond with the condition report, inspection options, and pricing.

About CMS Corequip

CMS Corequip is the equipment and consumables arm of CMS Asia Pacific Pty Ltd, with over 20 years in Australian underground mining, tunnelling and electrical. This equipment is offered directly by CMS. GST invoicing, ABN quoted.

Listing reference: MCH-DWP-0001-U
