CMS EXD Flameproof Excavator — Explosion-Protected, Underground Coal (Enquire)

Overview

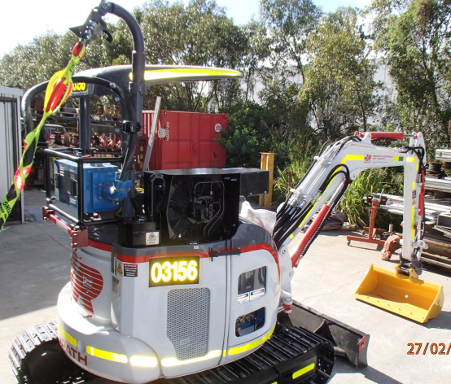

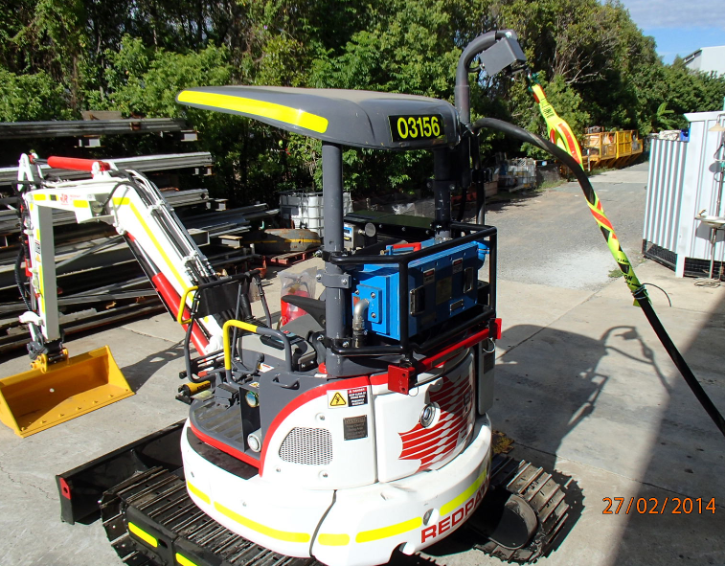

CMS EXD explosion-protected electric-hydraulic excavator, rated for ERZ1 & NERZ operation in underground coal mines. Based on a Komatsu PC30MR-2 platform and purpose-converted for flameproof underground coal use, with a short tail swing profile designed specifically for confined underground work. Supplied by CMS as a complete package including a full suite of interchangeable attachments — rotary cutter, auger drive with augers, rock breaker, and multiple buckets.

1 Unit rebuilt mechanically and electrically with AS3800 complete. 2nd Unit has electrics overhauled, requires Mechanical overhaul.

Machine Specifications

• Type: Explosion-protected (Ex) electric-hydraulic excavator
• Rating: ERZ1 & NERZ — underground coal
• Base platform: Komatsu PC30MR-2
• Electric motor: 22 kW
• Operating weight (no attachment): 4,170 kg (gross)
• Travel speed: 3.5 km/h (high) / 2.0 km/h (low)
• Slew speed: 8.8 rpm (does not slew 360° — 155° left / 155° right from forward centre line)
• Configuration: Short tail swing, crawler-mounted, dual operator control sets

Dimensions

• Transport length: 4,630 mm
• Overall height (to cab): 2,600 mm
• Overall height (to Davit arm): 2,800 mm
• Overall width: 1,590 mm
• Track width: 300 mm
• Track length (on ground): 2,105 mm
• Width of crawler: 1,550 mm
• Min ground clearance: 320 mm
• Radius of upper structure: 855 mm

Working Range (mono boom)

• Max digging reach: 5,150 mm
• Max digging depth: 2,910 mm
• Max digging height: 4,950 mm
• Max dumping height (bucket): 3,450 mm
• Max reach at ground level: 5,060 mm
• Min swing radius: 885 mm

Included Attachments

• Rotary Cutter TF100 — 470 mm drum width, 210 kg
• Augertorque EarthDrill 3500 auger drive — with 150 mm dia auger (1,200 mm, 22 kg) and 450 mm dia auger (41 kg); complete auger setup 145 kg
• Rock Breaker — 50 mm blade width, 158 kg
• Bucket — 0.09 m³ capacity, 65 kg
• General Purpose Bucket (300 mm) — 0.05 m³, 72 kg
• Ditch Cleaning Bucket (1000 mm) — 0.14 m³, 86 kg
• Quick Hitch — 2-way tilting, 116 kg
• Double Pin Cradle Hitch — 28 kg

Key Features

• Explosion-protected (Ex) — certified for ERZ1 & NERZ underground coal zones
• Electric-hydraulic drive — no diesel emissions underground
• Short tail swing for confined underground development
• Intrinsically safe junction box, methane monitor, and full underground safety fit-out
• Multi-tool versatility — dig, drill, cut, and break from one platform
• Trailing cable with cable tension switch and anti-shock system

Condition

Workshop maintained and well presented. Full condition report, service history, and compliance documentation available to qualified buyers on enquiry. Inspection by appointment, arranged through CMS Corequip.

Location & Delivery

Located in Australia. Delivery / float transport can be arranged and quoted separately to buyer's site. Sold as-is, where-is.

How to Enquire

Use the Enquire Now button above to register your interest. Include your company, ABN, intended application, timing, and budget. We'll respond with the full condition report, inspection options, and pricing.

About CMS Corequip

CMS Corequip is the equipment and consumables arm of CMS Asia Pacific Pty Ltd, with over 20 years in Australian underground mining, tunnelling and electrical. This machine is offered directly by CMS. GST invoicing, ABN quoted.

Listing reference: MCH-EXC-0003-U · CMS Asset 03156
