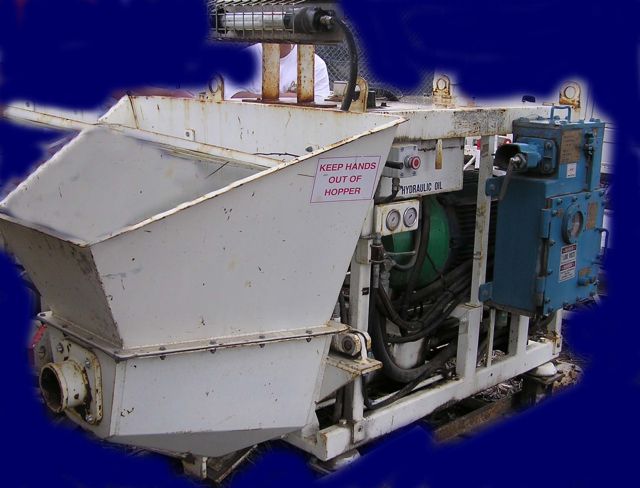

Flowcrete FC716 Concrete Pump — 1000V Electric, Mines-Approved (Enquire)

Overview

Flowcrete FC716 hydraulic swing-tube concrete pump, configured as a mines-approved 1000V electric-driven unit for underground coal and tunnelling applications. Australian-made, purpose-built for shotcrete and concrete placement in mining environments. A robust, twin-cylinder piston pump with proven swing-tube valve design for smooth delivery and fewer wear parts. Offered directly by CMS.

Specifications

• Manufacturer: Flowcrete Pty Ltd (Australian made)
• Model: FC716
• Drive: 1000V electric — mines-approved for underground coal
• Maximum concrete flow: 20 m³/hr
• Maximum concrete pressure: 30 bar
• Maximum hydraulic pressure: 200 bar
• Maximum stroke rate: 30 strokes/min
• Hopper type: V-shape
• Outlet diameter: 125 mm
• Concrete cylinder diameter: 180 mm
• Hydraulic cylinder: 83 mm
• Stroke length: 400 mm
• Valve design: Swing-tube (twin concrete cylinders)

Key Features

• 1000V electric drive — mines-approved for underground coal operations
• No diesel emissions underground — suited to gassy environments
• Swing-tube design for smooth, continuous delivery and reduced wear
• Twin-piston hydraulic pump — proven, simple, serviceable
• Suited to shotcrete spraying, grouting, and concrete placement in mining and tunnelling
• Australian designed and built

Condition

Workshop maintained and well presented. Full condition report and service history available to qualified buyers on enquiry. Inspection by appointment, arranged through CMS Corequip.

Location & Delivery

Located in Australia. Delivery / transport can be arranged and quoted separately to buyer's site. Sold as-is, where-is.

How to Enquire

Use the Enquire Now button above to register your interest. Include your company, ABN, intended application, timing, and budget. We'll respond with the condition report, inspection options, and pricing.

About CMS Corequip

CMS Corequip is the equipment and consumables arm of CMS Asia Pacific Pty Ltd, with over 20 years in Australian underground mining, tunnelling and electrical. This machine is offered directly by CMS. GST invoicing, ABN quoted.

Listing reference: MCH-PMP-0004-U
